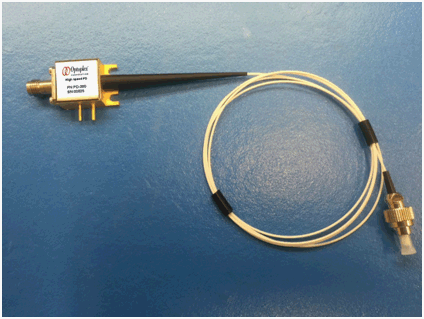

These high speed photodiode, PD-200, is hermetically sealed, high reliability, low harmonic distortion photodiode modules designed for high optical power applications with minimum bandwidths of 20 GHz. The device is well suited for receiver applications with optical pre-amplification, and is available either with or without an internal 50Ω termination. The photodiode module is available in either a V-connector package or a miniature surface mount package with CPW (coplanar waveguide) RF output.

• High Current Handling (up to 20 mA)
• Lowest PDL (typical 0.05 dB)
• Useable spectral wavelength range of 800-1650 nm
• Low Group Delay
• Low Harmonic Distortion
• V-connector (SMA) or surface mount package options
• Bellcore GR-468 Qualified
• One device for multiple wavelengths reduces operational & inventory costs

• Optically Amplified Systems
• RZ, NRZ, Super FEC Formats to 20 Gb/s
• High Dynamic Range, Analog RF Links over Fiber
• Rapid Doppler-Shift LIDAR Measurements
• Coherent Lightwave Systems
• Ideal Front-End O/E Converter for Test Instruments
