Fremont, California, November 20, 2024 — Optoplex today launched a series of optical delay-lines (ODLs) and delay-line-interferometers (DLIs) particularly for demanding quantum applications..

Optoplex is a technology and market leader of optical phase demodulators (DPSK, DQPSK, QPSK and DP-QPSK) and integrated receivers for telecom optical communications and aerospace satellite communications.

Products

The newly released optical delay-lines (ODLs) and the delay-line-interferometers (DLIs) include

1. Optical Delay-Lines (ODLs)
1. Fixed Delay-Lines:
1. Free-Space Design: max 1 ns
2. Hybrid Design: max 100 ns
2. Variable Delay-Lines:
1. a. Manually Variable: max 50mm moving range, ~333 ps
2. b. Motorized: max 150mm moving, ~ 1000 ps
2. Delay-Lines Interferometer (DLIs)
1. Fixed FSR:
1. Free-Space Design: min. 0.5GHz FSR
2. Hybrid Design: min. 10MHz (100ns delay)
2. Variable FSR:

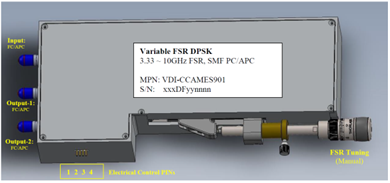

1. Manually Variable: max 50mm moving range, ~333 ps, or 3 ~ 15GHz FSR
2. Motorized: max 150mm moving, ~ 1000 ps, or 1 ~ 6 GHz FSR

Notes:

1. Regardless fixed or variable FSR, the DLIs are designed with phase tunable. Standard offer of the tuning range is 1.5FGSR. Wide tuning ranges such as >3 FSRs, > 5 FSRs, or even > 10 FSRs are available upon special request.
2. Available wavelength bands: C-, L-, C+L, or O-Bands.

Features

• Based on free-space optics and athermal design
• Extremely environment stable
• Low insertion loss
• Polarization independent
• Phase-Tunable

Applications

Optical delay lines (ODLs) and delay-line interferometers (DLIs) have a range of applications across different fields of optics and photonics. Some of the major applications include:

1. Optical Communications & Signal Processing
• Coherent Optical Systems: Used for phase matching, dispersion compensation, and synchronization of optical signals.
• Optical Packet Switching: Helps in buffering and time-division multiplexing in high-speed networks.
• Optical Code-Division Multiple Access (OCDMA): Employed in encoding and decoding optical signals.
• Clock Recovery & Optical Sampling: DLIs assist in precise clock extraction in high-speed optical networks.
2. Microwave Photonics
• Optical Beamforming Networks (OBFNs): Used in phased-array antennas for beam steering.
• Microwave Signal Processing: Delay lines assist in optical RF filters and signal correlation applications.
3. Metrology & Sensing
• Interferometric Measurement: DLIs are used in precise distance and displacement measurements.
• Optical Coherence Tomography (OCT): Optical delay lines play a role in depth scanning.
• Fiber Optic Sensors: Used in applications like fiber Bragg grating (FBG) interrogation and temperature/strain sensing.
4. Quantum Optics & Computing
• Quantum Key Distribution (QKD): Used in time-bin encoding and entanglement-based communication.
• Quantum Interference Experiments: DLIs are essential for quantum state superposition experiments.
5. Optical Coherence & Laser Stabilization
• Phase Noise Reduction: DLIs are used for stabilizing and filtering laser phase noise.
• Optical Frequency Comb Stabilization: Important in precision spectroscopy and timekeeping.

For more production information, please visit www.optoplex.com, or contact sales@optoplex.com .

About Optoplex Corporation
Optoplex Corporation is a leading provider of various innovative telecom components, modules and subsystems for communications networks. Optoplex focuses on designs, developments, and manufacturing of a broad platform of cutting-edge customized fiber-optic products for the telecom network systems, which allow network systems to more effectively utilize their current resources. Since June 2000, Optoplex has made large-scale investments in research and development activities by assembling a seasoned team of optical design, packaging and thin-film coating experts to revolutionize the fabric-optic products, thereby paving the path to the next generation of communication systems.

Based on its proprietary free-space optics platforms, Optoplex recently developed a series of cutting-edge products for demanding applications, from fiber optic sensing (DAS), Lidar, quantum communications (QKD, QRANG), quantum computing, quantum sensors, to satellite communications.
