In-line Fabry-Perot Etalon

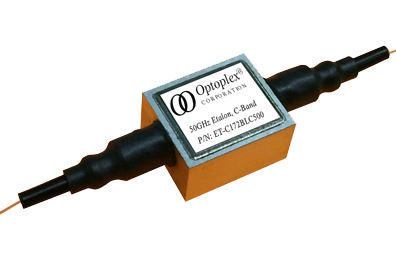

Optoplex In-line Fabry-Perot Etalon
Optoplex In-line Fabry-Perot Etalon
In-line F-P Etalon PDF Datasheet

  • Description
  • Features
  • Applications
  • Specifications
Product Description - In-line Fabry Perot Etalon

Optoplex’s Inline Fabry-Perot Air-Gap Etalon is based on its proprietary free-space optics technology. It provides periodical narrow passbands in both transmission and reflection modes. To ensure stability, the etalons are hermetically sealed and optically aligned to the input and output fiber collimators. Use of athermal optics and advanced manufacturing process allows these Fabry-Perot Etalons to maintain excellent accuracy of better than ±1.5 GHz within 0 ~ 70°C operating temperature range. The Inline F-P Etalons offer superior accuracy in free-spectral-range and great channel center wavelength stability.



Features and Benefits of In-line Fabry-Perot Etalon
  • Purely passive (no need for external electric power)
  • High FSR accuracy
  • Compact size
  • Based on free-space bulk-optics design
  • Highly insensitive to temperature change
  • Broad operating wavelength range (1000-1100, 1260-1360, 1360-1460, 1460-1525, 1525-1565 or 1560-1625 nm)
Applications of In-line Fabry-Perot Etalon
  • Wavelength locker
  • Dichroic filter
  • WDM multiplexing networks
  • Tunable filters
  • Laser resonator
  • Dispersion compensator
  • Interleavers
Optical Etalon Product Datasheet
Optical Performance Specification
Parameter Symbol Unit FSR
Free Spectral Range FSR GHz 200 100 50
FSR Tolerance ΔFSR GHz ±0.2 ±0.05 ±0.013
Center Frequency Alignment at Room Temperature ΔΦ GHz ±2.6 ±1.3 ±0.7
Temperature Dependent Frequency Shift TDFS MHz/°C 40 30 20

3-dB Bandwidth for 50, 100, and 200 GHz Etalons with Different Reflector
Mirror Reflectance Symbol Unit FSR
200GHz 100GHz 50GHz
31% FWHM GHz 85.1 42.5 21.3
45% FWHM GHz 53.8 26.9 13.5
64% FWHM GHz 28.9 14.5 7.2
70% FWHM GHz 23.0 11.5 5.7
80% FWHM GHz 14.3 7.1 3.6

Peak Insertion Loss at T- and R-Channel for Different Reflector
Mirror Reflectance Symbol Unit T-Channel R-Channel
31% IL dB -1.5 -2.3
45% IL dB -1.7 -1.6
64% IL dB -1.8 -1.3
70% IL dB -2.0 -1.2
80% IL dB -2.3 -1.2
