Home > Products > Optical Test & Measurement > EDFA
EDFA

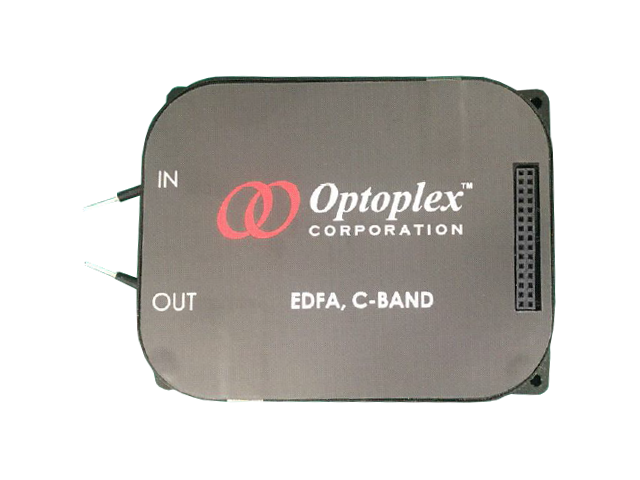

Optoplex EDFA
Optoplex EDFA

23dBm EDFA Booster PDF Datasheet

  • Description
  • Features
  • Applications
  • Specification
Product Description - Erbium Doped Fiber Amplifier (EDFA)

Optoplex designed and produced high power single-mode and polarization-maintaining EDFA, which met MSA compatible requirements. C-band MSA EDFA Module with +23 dBm Output Power is Optoplex standard product. Optoplex designed Pre-EDFA provides more than 35dB gain with -40dBm input power. The Double-Cladding pumped EDFA produces 2W output power.

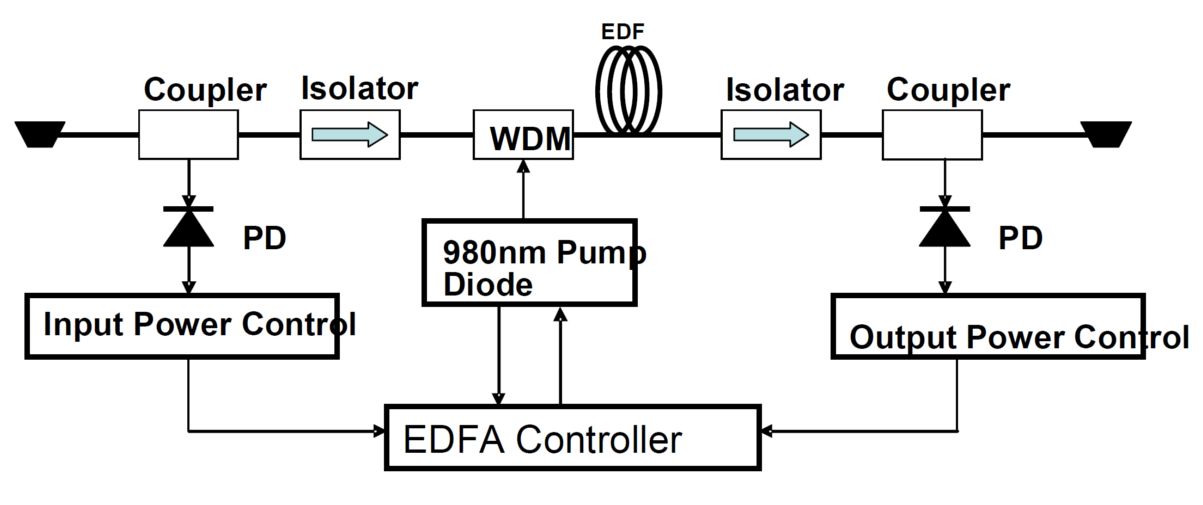

Following shows the popular MSA EDFA configuration.



Features and Benefits of EDFA
  • 1530-1565nm wavelength range
  • 23dBm output power
  • MSA compatible Compact size
  • 5Vdc power supply
  • U-ART and USB communication interface
  • Low Noise Figure
Applications of EDFA
  • Remote Sensing Amplifier
  • Telecommunication
  • Optical add/drop module
  • Power equalization
  • Lidar booster and pre-amplifier



Performance Specifications of 23dBm EDFA Booster

Parameter

Min

Typ.

Max

Unit

Conditions

Wavelength Range 1530 1565 nm C-Band
Input Optical Power -10 1 10 dBm
Total Output Power 23 dBm Pin > 0 dBm
Noise Figure 5.5 6.0 dB Pout = -10 to 0 dBm
6.5 7.0 Pin = 10 dBm
Polarization Mode Dispersion (PMD) 0.5 ps
Polarization Dependent Gain (PDG) 0.5 dB
Return Loss 35 dB Pump Laser Off
